Hand Pumps

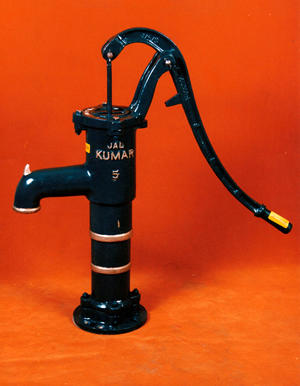

Hand Pump

Body direct on line, life and force type of hand pump. Manual reciprocating action (by fulcrum mechanism) through handle is transmitted to a line of plunger rod to the cylinder an actual water pimping element in the bore-well.

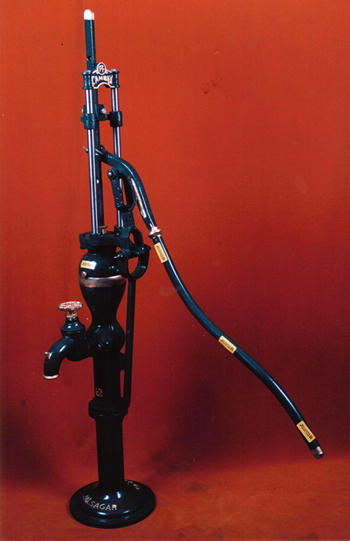

Wheel Pump

Body direct on line, life and force type of hand pump. The rotational action through wheel is converted to reciprocating action by the eccentric unit; is joined to a line of plunger rods to the cylinder an actual water pumping element

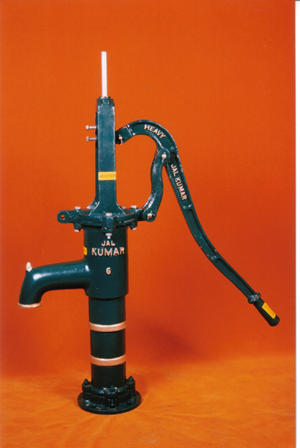

Direct – On- Line Pump

Life and force type of hand pump having fulcrum mechanism is directly fixed to a plunger rod of the cylinder pumping element (pump itself). Pump is joined to a draft end fitted with check valve deeped in water reservoir through water is drawn to specific height.

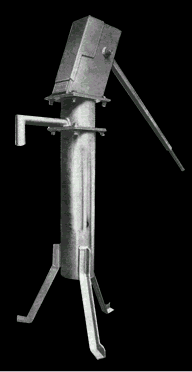

Unicef Type of Hand Pump

M.S.Fabricated body lift & force type of pump having three sections.

  1. Top end Mechanism Have Conventional bearing Housed pin works as Fulcrum.
  2. Water Chamber
  3. Stand Can be Directly installed on bore-well Casing Pipe.

Jet Pump

A vertical motorized pump having an rotating impeller draws water through priming pipe joined to a jet unit at the other end in bore-well while the next pipe allows to flow excess water from the pump chamber developing pressure in to the jet unit; supporting pump to lift & draw more water from deep well. For varying water depth level the pump having pressure valve unit at delivery, allows set water pressure to work at its maximum efficiency.
